The History of the Régnier Dynamometer

By David Horne and Elizabeth Talbot
(Originally featured in Iron Grip magazine Vol 2 # 3, July 2002)

The Régnier dynamometer, invented and built by Edme Régnier (1751 – 1825), was brought to prominence in the world of physical culture in the early 20th century by Professor Edmond Desbonnet. It is easy to forget the life of the dynamometer before Desbonnet reintroduced it to strongman society.

It was in the early 1780s that Régnier was encouraged to begin the designs for his apparatus by Buffon and Guéneau, of Montbelliard, both naturalists, who desired that he devise a manner by which a man’s strength would be rendered comparable to that of another. They wished to test the relative abilities of men of different ages and in varying states of health through the use of a simple, portable and precise machine. A few years previously, Graham and Leroy, both well known to Buffon and Gueneau, had invented their own machines, but these were deemed unsatisfactory: too big, and too specific (1). Leroy’s apparatus, for example, was only capable of testing the strength of an individual finger or hand, not each individual limb as was required. It consisted of a metal tube, ten to twelve inches long, which stood on a base. Inside the tube was a spring and surmounting this, a rod with a scale, which was graded for difficulty. At the top of this rod was a small globe, which could be pressed with a finger or hand, and the strength was indicated by the level that could be read on the scale (2). They lacked the versatility that Régnier later achieved: one piece of equipment with which the strength of a single finger, a hand, a limb or the whole body could be tested. There were many attempts made before they were finally satisfied with Régnier’s design. All of these failures, however, resulted in the design for the perfect dynamometer, which could easily compare the progress of strength from infancy right through to death (2).

The date given for the manufacture of the dynamometer is late 1790s, and this leads one to wonder at the lapse of time in between the date of commission in the early 1780s and the final production. Régnier’s studies were in fact interrupted in the later 1780s by the deaths of both Guéneau and Buffon (1785 and 1788 respectively), who died during the French Revolution (during this time, Régnier himself became inspector of the manufacture of portable arms). It was not until 1796 until Régnier was encouraged to resume his work by the physician Coulomb, who recommended that in view of the developing industry and the redressing of the national economy, Régnier should continue his experiments with his invention (1).

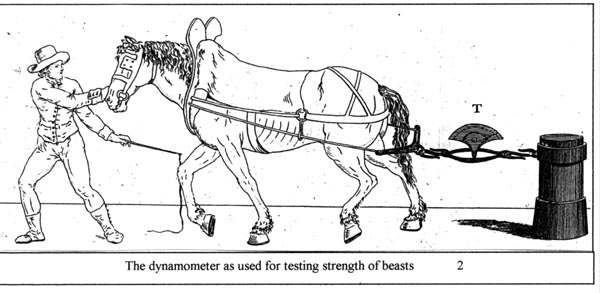

It was imperative that the dynamometer could also scale very high poundages and have useful applications. For example it was to be used for testing the strength of bridled work animals, but particularly for testing and comparing the strengths of horses. It was also used for determining the efficiency of a carriage with well-mounted and well-made wheels, and appreciating the resistance of a loaded carriage according to the slope of a hill. It determined the relative aid that additional horses would give when pulling a carriage. In addition to this Régnier’s machine is capable of testing the strengths of motors, weighing loads, measuring the recoil of large firearms and consequently the force of the missile. Unfortunately, the death of Régnier’s overseers resulted in the use of the dynamometer being restricted to the amusement of young people, who disputed the superiority of their strength. As such, its full capability was never disclosed, and only one aspect of the dynamometer was fully exploited: the precision of both scale and instrument allowed the accuracy of recording that the instigators had desired (2).

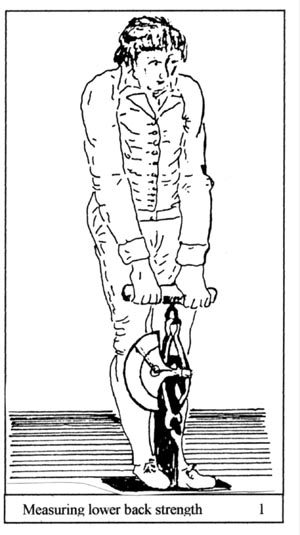

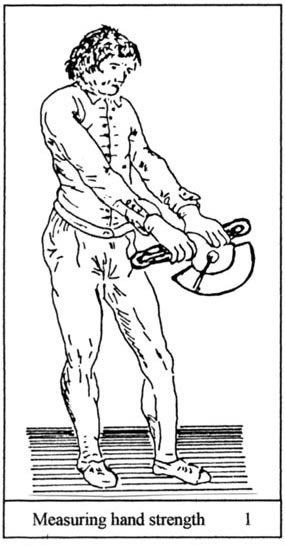

The dynamometer is also impressive to observe: an elliptical spring, which serves as the frame of the apparatus, covered with leather (so as to prevent the hands from injury) and forged of tempered steel. Surmounting this is an engraved brass double scale shaped almost like an open fan. One scale shows results in myriagrams and the other in kilograms. A needle, made of steel, is affixed to the centre of the scale, with two arrows for accuracy of measurement on both scales. The first scale, in myriagrams (one of which equals just over 20lbs.), which rises by 10lbs per mark, was used for any experiment that required the dynamometer to be elongated, such as testing the strength of the lower back: in fact, any movement that caused the two ‘elbows’ of the ellipse to be pulled apart. The second scale was intended to be used when both ends of the ellipse were being squeezed together, such as when testing the strength of the hands. There is a small plaque of brass, which covers the mechanism and protects it from damage when being transported, and this piece also allows the easy removal of the needle, should it be necessary. The entire object is 12 inches (32 centimetres) long. With it was supplied an iron stand, with hooks fashioned into the vertical height onto which the dynamometer would be secured. The person using the apparatus would then place his feet on the base of the stand and a wooden double handle, attached to the machine using an iron hook, would be held in both hands and the dynamometer thus employed to test the strength of the back. Along with this is an iron hook in an ‘s’ shape, which would link the dynamometer and a sturdy post set in the ground together, in order to ascertain the strength of a horse pulling against the machine (2).

The first documented usage of Régnier’s Dynamometer is found in a study undertaken by François Péron, from which he concluded that Tasmanians, Australians and Timorese were of much weaker physical strength than the English or French. Péron’s study, entitled ‘Old and Modern Views in Anthropology and Ecology’ was carried out between the years 1800 and 1804. On the 19th October 1800, he embarked for Australasian soil aboard Le Géographique and from the time when he landed, he persevered with the writing of a diary. In February 1802, Péron reported that his bad experiences with the savages had tired him, and he was now resolved to terminate his perilous encounter with these peoples, but that he must, at any price, repeat and confirm his observations already taken regarding their physical strength. Upon meeting with the natives, Péron remarked that the wild men were fascinated with the instrument and all wanted to touch it at once. After they had all gained some conception of the workings and purpose of the instrument, seven men volunteered themselves to try it, and one of these stepped forward to be the first. According to Péron, the man’s attempts moved the needle no further than Péron’s own, and he was so indignant at his own inability that he approached Péron, angrily seized his cuff and demanded that he demonstrate his ability on the spot. Péron’s report states that he managed to do this, albeit after several attempts, but was at the end of his strength in so doing. The native’s attitude, apparently, was altered from that of anger to one more of confusion. Péron’s account leads one to wonder at the credence in his claim that his discoveries proved the weakness of indigenous Australasians: an uneducated man, unfamiliar with the apparatus, matched, on his first attempt, the achievement of Péron himself, who had only gained his result after many efforts. This was, however, proof enough that the French, a civilised society, were stronger than a native one (1). The motivation given to the ‘savages’ was also frequently questioned in later studies: indeed, what incentive could a Timorese or Tasmanian in the early nineteenth century find, to demonstrate his physical abilities to white men who had repeatedly exploited them for their manual labour? (3)

Desbonnet had taken Maspoli to a weightlifting competition in London in 1902 when he met James Pedley, Chief Instructor at the Sandow School in London. He remarked that Pedley had terrific hand strength (4). To confirm this, it is also recorded that Pedley could take a 200lb. dumbbell by the nuts at each end in his fingers and thumbs, and clean and press it (5). Upon meeting him, Desbonnet entreated Pedley to try Régnier’s dynamometer. He broke Batta’s record by 11 kilos, achieving 132kg. When Desbonnet was recounting this tale to Apollon back in France, Apollon initially showed little interest. He was reluctant to attempt what he termed another of Desbonnet’s ‘little gadgets,’ but Desbonnet was determined to coerce Apollon into testing his strength. He told Apollon that Batta’s record had been lost to an Englishman at the peak of his strength, and Batta had no hope of regaining it. Another record was lost to the French. What made it worse, he added, was that there was not a single man in France who could recover the record. Desbonnet also commented that Batta had said of Apollon that he would not want to try the dynamometer for fear of doing poorly. Convinced that he must prove himself, and swayed by Desbonnet’s less-than-subtle provocation, Apollon casually took hold of the dynamometer and achieved 153kg on his first and only attempt, breaking the record by 21 kilos. He handed it back to Desbonnet, declaring that it had hurt his hands, and he would not try any more of his gadgets again. In Desbonnet’s opinion, had Apollon tried the dynamometer again, he would have attained 170 to 180kg (4).

Other dynamometers followed the Régnier, which were similar in style and usage. Amongst these were George Tiemann’s dynamometer from the 1800s and the Marine Compass Company’s apparatus from c. 1910. Three of Régnier’s dynamometers have been located, the first in Urbino University in Italy and the second in the Physics Laboratory of the Tuscany Technical Institute. The third is still located in Paris, in the Musée de l’Armée.

Professor Edmond Desbonnet, the famous French physical culturist, tested manyofhis pupils using Régnier’s dynamometer, in order to record their progress over time andcompare their results. Most importantly, Desbonnet used the dynamometer to test the famous and lesser-known professional and amateur strongmen and wrestlers of the day. This testing mainly took place at his physical culture schools, such as l’Halterophile Club de France (the H. F. C., or the Weightlifting Club of France). The recorded results are charted below.



















---



REGNIER DYNAMOMETERS - WHERE ARE THEY NOW?

1. Urbino University, Italy.
-The History of the Regnier Dynamometer by David Horne and Elizabeth Talbot, Iron Grip magazine Vol.2 #3, July 2002, p.7. (Pictured above)

Details here

2. Physics Laboratory of the Tuscany Technical Institute, Italy.
-The History of the Regnier Dynamometer by David Horne and Elizabeth Talbot, Iron Grip magazine Vol.2 #3, July 2002, p.7.

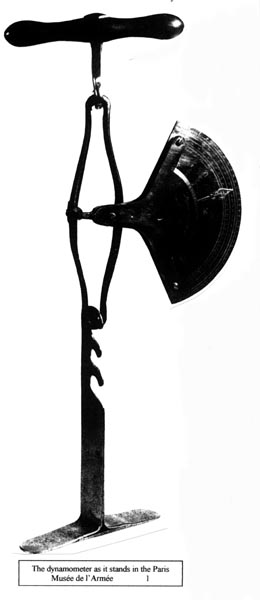

3. Musee de l’Armee, Paris, France.
-The History of the Regnier Dynamometer by David Horne and Elizabeth Talbot, Iron Grip magazine Vol.2 #3, July 2002, p.7. (Pictured above)

-Note sur le dynamometer de Regnier by Jean Jamin, Gradhiva, #1, Autumn 1989, p.17-21. (Pictured)

4. Gilai Collectibles, Dr. Arieh N. Gilai, Jerusalem, Israel.
- http://www.gilai.com/scripts/more/med488-diagnostics-Diagnostic+Instruments-no-1 (Pictured), and our Regnier article is on the site. Dynamometer now sold off.

5. Millington/Barnard Collection at the University of Mississippi, U.S.A.
[The dynamometer invented by Edmund Regnier and described by him in 1798, appears to have been used for measuring force. The oval spring at the bottom could be compressed across its short dimension or elongated across its long dimension. The scale mechanism was connected to one side of the spring and the body of the device to the other side. This apparatus, in the Millington/Barnard Collection at the University of Mississippi, is shown in its original padded case, along with various attachments. It was probably purchased by Prof. F.A.P. Barnard for Mississippi in the second half of the 1950s from Lerebours et Secretan of Paris, and cost 250 francs, or about $50.]
-http://physics.kenyon.edu/EarlyApparatus/Mechanics/Dynamometer/Dynamometer.html (Pictured).

6. Antique Scientific Instruments and Globes Auction at the Dorotheum Auction House, Vienna, Austria.
An early 19th century brass Dynamometer with burnished steel fittings, signed "Dynamometre / de Regnier & Reymondon / a Grenelle & a Paris", fitted in a walnut case with brass hooks. - Sold on 25/10/2004 for 1,700 Euros.

Articles and appearances of the dynamometers in the past -

1. Article on Regnier Dynamometer showing the Reglementaire and libre styles.
-La Culture Physique magazine June 1, 1908, p.1116-1117.

2. Three Regnier dynamometer’s pictured on the wall of Desbonnet’s study!
-L’Art de creer le Pur-Sang humain by Georges Rouhet and Professeur Desbonnet, 1908, p.9 (pictured), and being used p.xlvi.

-Apollon pictured with a Regnier dynamometer, presumably Desbonnet’s.
Les Rois de Force, Desbonnet, 1911, p.445.

-The History of the Regnier Dynamometer by David Horne and Elizabeth Talbot, Iron Grip magazine Vol.2 #3, July 2002, p.7.

3. Leopold Gasseau pictured with a Regnier dynamometer and other grippers on a wall in his collection.
-La Culture Physique, 1 June 1909, p.377 & 15 August 1909, p.548.

-The History of the Regnier Dynamometer by David Horne and Elizabeth Talbot, Iron Grip magazine Vol.2 #3, July 2002, p.7.

Paintings of the dynamometers

1. Musée des arts et metiers, Paris, France.
60, rue Réaumur
75003 Paris
Colour painting of the Regnier Dynamometer being used.
Pictured at: http://www.arts-et-metiers.net/magic.php?P=75%E2%8C%A9=fra
